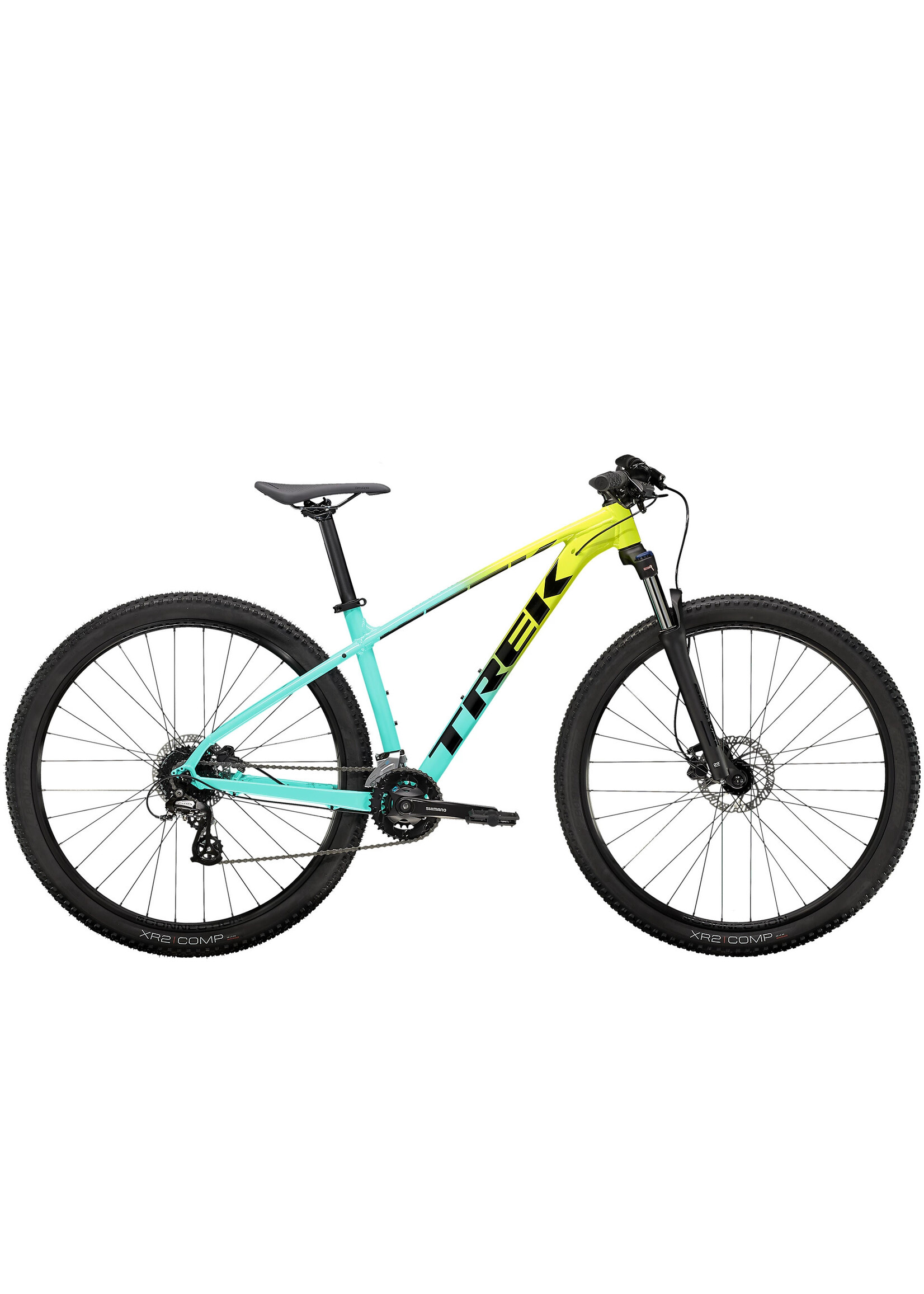

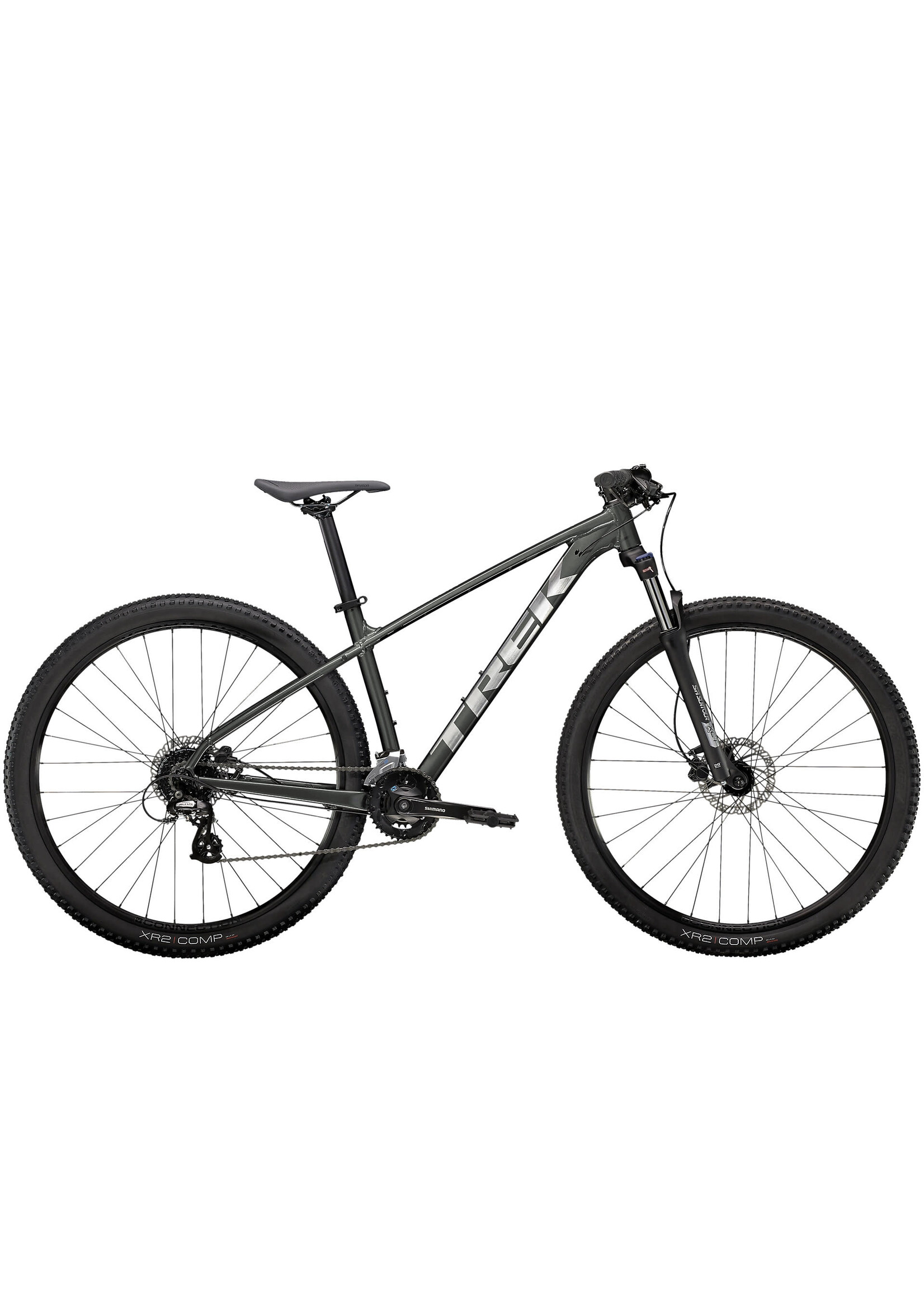

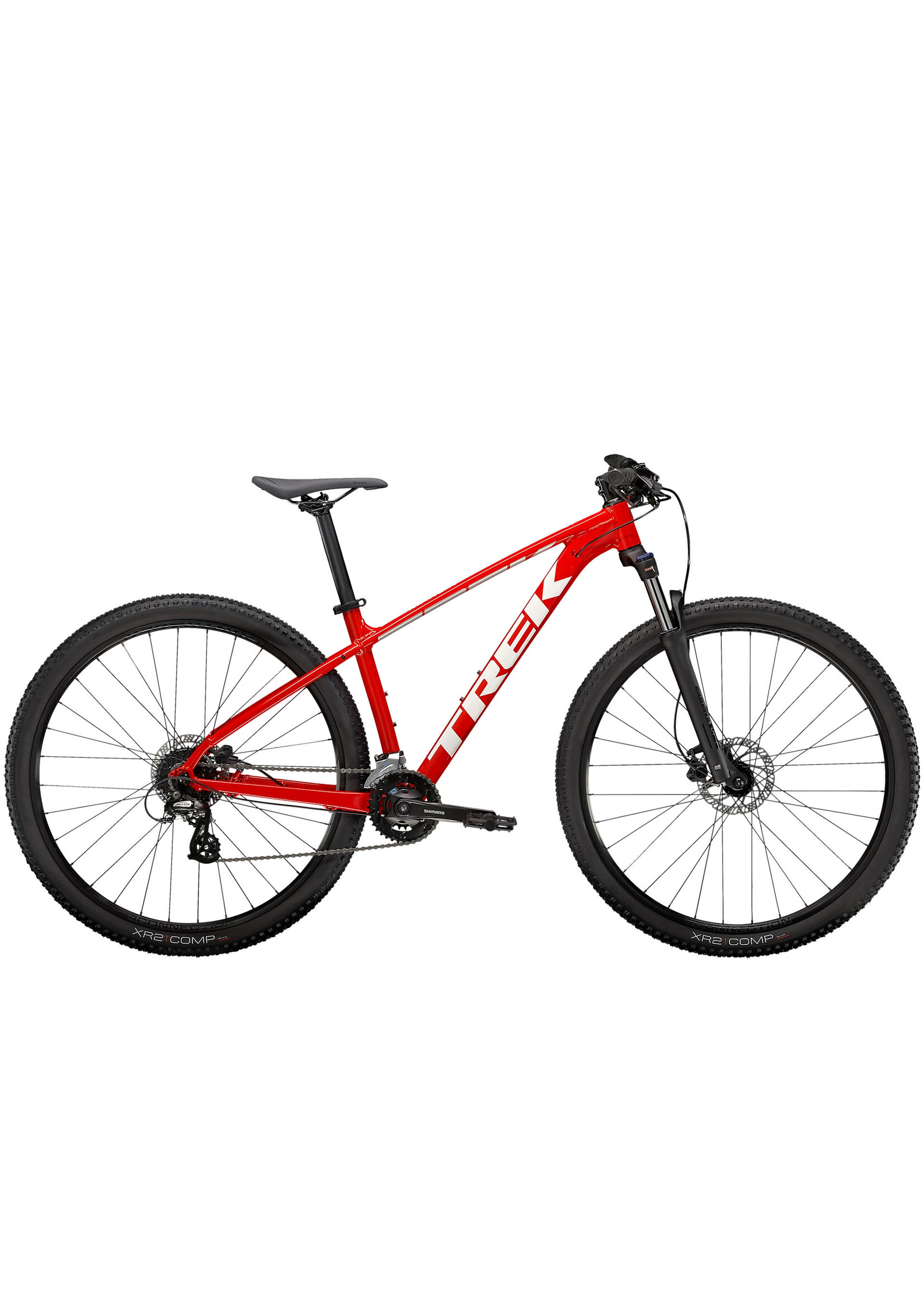

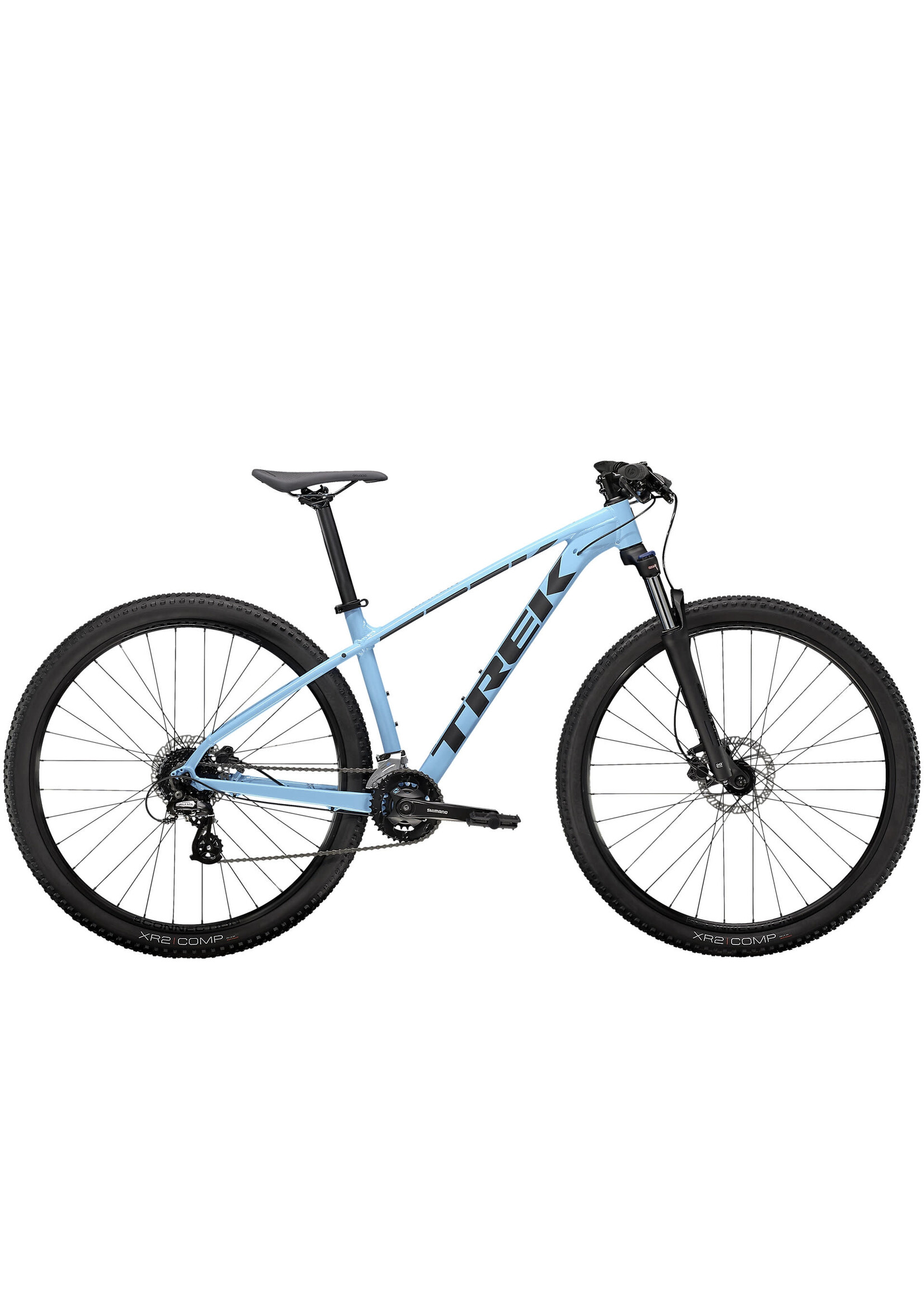

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders.
*spec applies to all sizes unless otherwise noted
| Frame | Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |
|---|---|
| *Fork | Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel |
| Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
|
| Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
| Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| *Rim | Size: XXS Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve |
| Size: XS , S , M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|
| Spokes | 14 g stainless steel |
| *Tyre | Size: XXS Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20" |
| Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" |
|
| Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" |
|
| Max tyre size | Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer |
| Shifter | Shimano Altus M315, 8-speed |
|---|---|
| Front derailleur | Shimano Altus M315, 34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M310 |
| *Crank | Size: XXS Prowheel TM-CY10, 36/22, 160 mm length |
| Size: XS , S , M Shimano M315, 36/22, 170 mm length |
|
| Size: ML , L , XL , XXL Shimano M315, 36/22, 175 mm length |
|
| Bottom bracket | VP BC73, 73 mm, threaded cartridge |
| Cassette | Shimano 8-speed, 12-32T |
| Chain | KMC Z8.3, 8 speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x/2x: 34T, 3x: 42T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length |
| Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar | Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
|
| Grips | Bontrager XR Endurance Comp |
| *Stem | Size: XXS Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 35 mm length |
| Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
|
| Size: S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
|
| Size: M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
| Size: ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: XL , XXL Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length |
|
| Head set | Semi-integrated, 1-1/8" |
| Brake | Tektro HD-M275 hydraulic disc, 180 mm rotor |
| Weight | M - 13.97 kg / 30.81 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
