Product image slideshow Items

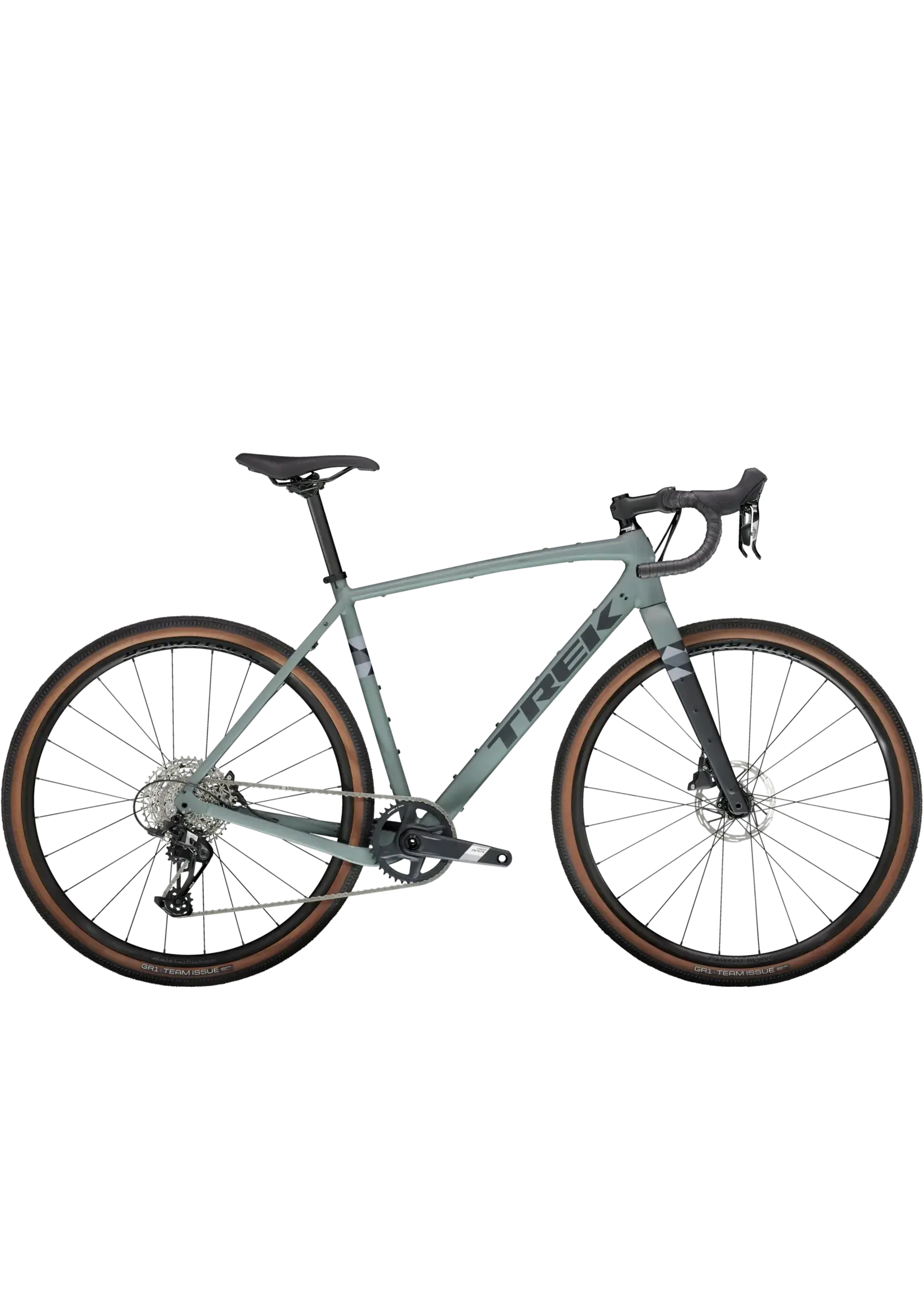

The Checkpoint ALR 5 is an adventure-ready alloy gravel bike that's kitted with quality parts for long, rugged, miles on anything from chunky gravel to smooth tarmac. A wealth of features like loads of mounts for bags and racks
| Weight | 56 - 9.71 kg / 21.41 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Shifter | SRAM Apex, 12-speed |
|---|---|
| Rear derailleur | SRAM Apex XPLR, 44T max cog |
| *Crank | Size: 49 SRAM Apex 1, 40T, DUB Wide, 165 mm length |
| Size: 52 SRAM Apex 1, 40T, DUB Wide, 170 mm length |
|
| Size: 54, 56 SRAM Apex 1, 40T, DUB Wide, 172.5 mm length |
|
| Size: 58, 61 SRAM Apex 1, 40T, DUB Wide, 175 mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XPLR PG-1231, 11-44, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Max. chainring size | 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34 |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | See service manual |
| *Saddle | Size: 49, 52 Bontrager Verse Comp, steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145 mm width |
|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar | Size: 49 Bontrager Elite Gravel, alloy, 38 cm width |
| Size: 52 Bontrager Elite Gravel, alloy, 40 cm width |
|
| Size: 54, 56 Bontrager Elite Gravel, alloy, 42 cm width |
|
| Size: 58, 61 Bontrager Elite Gravel, alloy, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Brake | SRAM Apex hydraulic disc, flat mount |
| Brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Brake lever | SRAM Apex, 12-speed |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
